Printing Unit

Folabase U

UNDERPACKING FOIL, NON ADHESIVE

Folabase U offers reliable support for adaptation to cylinder circumferences and print lengths in offset printing presses and ensures optimum dot transfer.

Folabase U can be applied very easy beneath printing formes and rubber blankets. Furthermore the material can be used in coating units in combination with our compressible Folacomp underpacking to achieve ideal rolling conditions.

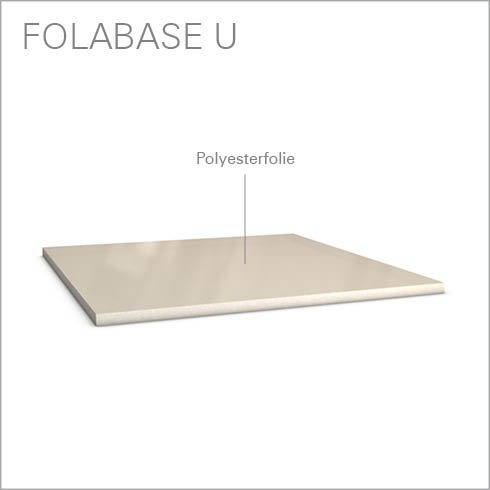

Folabase U consists of a biaxial stretched polyester layer which offers high dimension stability. The thickness tolerance is low. The material composition has an extremely high swell resistance to dampening solutions and cleaning agents and shows fewer tendencies to breaks.

For product introduction by video please click here.

Cut sheets

Art. Number	Nominal thickness (mm)	Nominal thickness (inch)
12000.040.99900	0.04	.0157
12000.080.99900	0.08	.0031
12000.100.99900	0.10	.0039
12000.120.99900	0.12	.0047
12000.140.99900	0.14	.0055
12000.160.99900	0.16	.0063
12000.180.99900	0.18	.0071
12000.200.99900	0.20	.0079
12000.230.99900	0.23	.0090
12000.250.99900	0.25	.0098
12000.280.99900	0.28	.011
12000.300.99900	0.30	.0118
12000.350.99900	0.35	.014

Rolls

Art. Number	Width (mm)	Length (m)	Nominal thickness (inch)	Nominal thickness (mm)
12000.040.11300	1300	50	.0016	0.04
12000.080.11300	1300	50	.0031	0.08
12000.100.11300	1300	50	.0039	0.10
12000.120.11300	1300	50	.0047	0.12
12000.140.11300	1300	50	.0055	0.14
12000.160.11300	1300	50	.0063	0.16
12000.180.11300	1300	50	.0071	0.18
12000.200.11300	1300	50	.0079	0.20
12000.230.11300	1300	50	.0090	0.23
12000.250.11300	1300	50	.0098	0.25
12000.280.11300	1300	50	.011	0.28
12000.300.11300	1300	50	.0118	0.30
12000.350.11300	1300	50	.014	0.35

Technical data

Characteristic

• Paper jam-resistant Crease-resistant / self-healing
• Polyester-basis/ -carrier
