Printing Unit

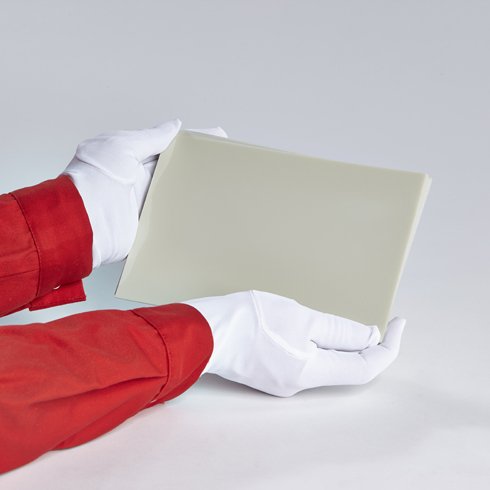

Folabase Soft U
UNDERPACKING FOIL, NON ADHESIVE
Folabase Soft U offers reliable support for adaptation to cylinder circumferences and print lengths in offset printing presses and ensures optimum dot transfer.
The two-layer compound made of dimensionally stable polyester and extremely ductile polyurethane ensures an extremely high dimensional stability and consistent thickness. Unlike paper-based underpacking sheets the Folabase Soft U has a certain smash resistance and can be used again. To achieve an optimum effect, make sure that the Folabase Soft U is mounted on the printing cylinder with the soft polymer side facing upwards. Additionally it is highly swell resistant to dampening solutions and cleaning agents.
For product introduction by video please click here.
Cut sheets
| Art. Number | Nominal thickness (inch) | Nominal thickness (mm) | |
|---|---|---|---|
| 12001.350.99900 | .014 | 0.35 |  |
| 12001.400.99900 | .016 | 0.40 | |
| 12001.450.99900 | .018 | 0.45 | |
| 12001.500.99900 | .020 | 0.50 | |
| 12001.550.99900 | .022 | 0.55 | |
Rolls
| Art. Number | Width (mm) | Length (m) | Nominal thickness (inch) | Nominal thickness (mm) | |
|---|---|---|---|---|---|
| 12000.350.11300 | 1270 | 50 | .014 | 0.35 | |
| 12001.400.11300 | 1270 | 50 | .016 | 0.40 | |
| 12001.450.11300 | 1270 | 50 | .018 | 0.45 | |
| 12001.500.11300 | 1270 | 50 | .020 | 0.50 | |
| 12001.550.11300 | 1270 | 50 | .022 | 0.55 | |
Technical data
- Paper jam-resistant Crease-resistant / self-healing
- Polyester-basis/ -carrier
