Grinding Stones

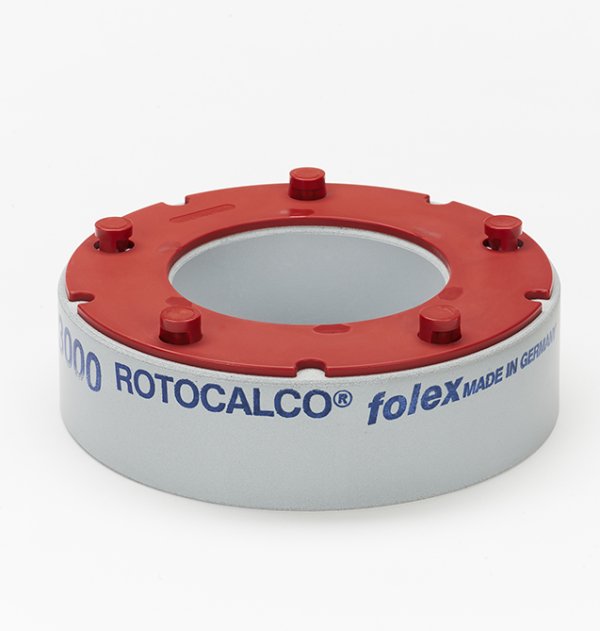

ROTOCALCO® Grinding Stone with Quick-Lock-Adapter disc
In the modern Grinding Industry, which is primarily characterized by the demand for economy and productivity, innovative connection solutions play an important role. Quick retrofitting and setting up the grinding machines for optimum grinding conditions must therefore be accorded special importance.
Common Quick-Lock systems offer a good opportunity to significantly reduce make-ready times. The adapter discs were finally bonded to the grinding stone with a special hybrid adhesive. The adhesive used here achieves optimum adhesion to the porous grinding stone surface and the adapter disc. The bond provides a good temperature and moisture resistance.
A trouble free use of our grinding stone with Quick-Lock adapter can be assured.
Due to the lack of pin anchors, the height of our Rotocalco Grinding stones can be optimally utilized.
Rotocalco Grinding stones with Quick-Lock adapter disc for processing copper cylinders are available with a 100 mm inner hole. On request, grinding stones with a 50 mm inner hole can also be equipped with the Quick-Lock adapter disc. We will gladly submit you our detailed offer.
After successful use, the Grinding stone can be easily removed from the bayonet carrier plate. Optionally we offer a special tool for detaching the grinding stones.
PRODUCT ADVANTAGES:
- Quick installation of the Grinding stone
- Weight savings through solid plastic
- Corrosion-free
- Optimum use of the Grinding stone height
- Easy clamping and unclamping with special tool
Cut sheets
| Art. Number | Grit size | Outer Hole Diameter in mm | Height approx. (mm) | Centre Hole Diameter in mm | pcs per package | |
|---|---|---|---|---|---|---|
| 12910.012.55007 | 120 | 190 | 50 | 50 | 12 |  |
| 12910.018.44007 | 180 | 190 | 50 | 50 | 12 | |
| 12910.028.00007 | 280 | 190 | 50 | 50 | 12 | |
| 12910.040.04007 | 400 | 190 | 50 | 50 | 12 | |
| 12910.060.06007 | 600 | 190 | 50 | 50 | 12 | |
| 12910.080.08007 | 800 | 190 | 50 | 50 | 12 | |
| 12910.150.05007 | 1500 | 190 | 50 | 50 | 12 | |
| 12910.200.02007 | 2000 | 190 | 50 | 50 | 12 | |
| 12910.250.06207 | 2500 | 190 | 50 | 50 | 12 | |
| 12910.300.03007 | 3000 | 190 | 50 | 50 | 12 | |
| 12910.500.50007 | 5000 | 190 | 50 | 50 | 12 | |
| 12910.012.55008 | 120 | 190 | 50 | 100 | 12 | |
| 12910.015.33008 | 150 | 190 | 50 | 100 | 12 | |
| 12910.018.44008 | 180 | 190 | 50 | 100 | 12 | |
| 12910.028.00008 | 280 | 190 | 50 | 100 | 12 | |
| 12910.040.04008 | 400 | 190 | 50 | 100 | 12 | |
| 12910.060.06008 | 600 | 190 | 50 | 100 | 12 | |
| 12910.080.08008 | 800 | 190 | 50 | 100 | 12 | |
| 12910.100.01008 | 1000 | 190 | 50 | 100 | 12 | |
| 12910.150.05008 | 1500 | 190 | 50 | 100 | 12 | |
| 12910.200.02008 | 2000 | 190 | 50 | 100 | 12 | |
| 12910.250.06208 | 2500 | 190 | 50 | 100 | 12 | |
| 12910.300.03008 | 3000 | 190 | 50 | 100 | 12 | |
| 12910.500.50008 | 5000 | 190 | 50 | 100 | 12 | |
