Special Products

GO-MA/2K ESD

Polyester film with matt and conductive coating on the front side. The specific surface resistance of 106 to 109 ohm/square (DIN 53482) allows slow release without lightning discharge. Reverse side with ink receptive coating. Material is available with a thickness of 0.13 or 0.18 mm.

Available in sheets and rolls. Sheets available in standard packing unit or on demand. All sheets are equipped with interleaving paper as standard. Options such as self-adhesive protective film is available but will be an additional cost.

Cut sheets

Art. NumberNominal thickness (mm)Packing quantity
4805x.130.xxxxx0.13100PDF
4805x.180.xxxxx0.18100PDF

Rolls

Art. NumberLength (m)Nominal thickness (mm)
4805x.130.xxxxx1000.13PDF
4805x.180.xxxxx1000.18PDF

Technical data

Characteristic

  • Ink receptive coating
  • Suitable for window printing
  • No lightning discharge

Properties

PropertyTest MethodValue
Optical
HazeASTM D1003-7790 - 95%
Gloss level (60°)ASTM D2457-70, ASTM D5236 - 7 GU
Mechanical
EmbossingFolex methodpossible
Tensile strength at breakASTM D 882170 N/mm2
Switch lifeFolex method according to DIN 42115 > 5 Mio. flexes
Chemical
Chemical stabilityFolex methodgood
Electrical
Dielectric strength1ASTM D149-81120 kV/mm (125 µm)
Dielectric constant 1ASTM D150, 1 kHz3,25 (23my)
Surface resistivityASTM D257-83 106 - 109 Ohm/sq.
Thermal
Shrinkage TD130°C 30 min Folex method< 0,7%
Shrinkage MD130°C 30 min Folex method< 0,7%
Maximum processing temperature120°C
Melting temperature1ASTM E794-85255°C
Surface
Roughness RaEN ISO 4287, ASME B46.10,8 - 1,1 µm
Scratch resistanceFolex methodgood
Surface tension front sideDIN 53364, ASTM D257844 ± 2 mN/m
Surface tension reverse sideDIN 53364, ASTM D257838 ± 2 mN/m

1 Data derived from base film Polyester manufacturer's literature for base film

Specifications

Nominal thickness (mil)5.2
Nominal thickness (mm)0.13
Base MaterialPolyester
Packing quantity 100

Product Applications

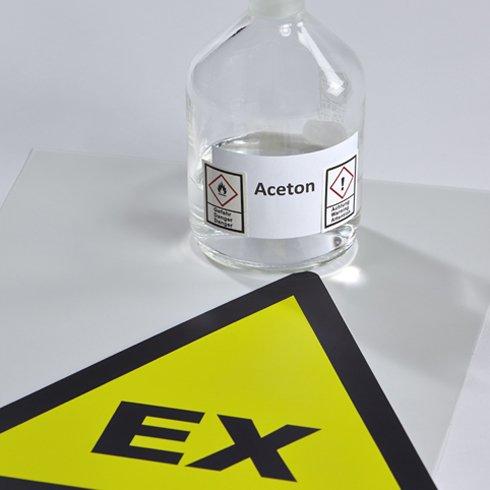

  • Suitable for Membrane Switches, sign production as well as for production of labels

Handling

  • Preliminary testing necessary by customer

Storage

  • Once packaging is opened, store at a room temperature of 15 - 25°C and at a humidity of 30 - 60 %
  • Shelf life 1 year after delivery (under above storage conditions)
